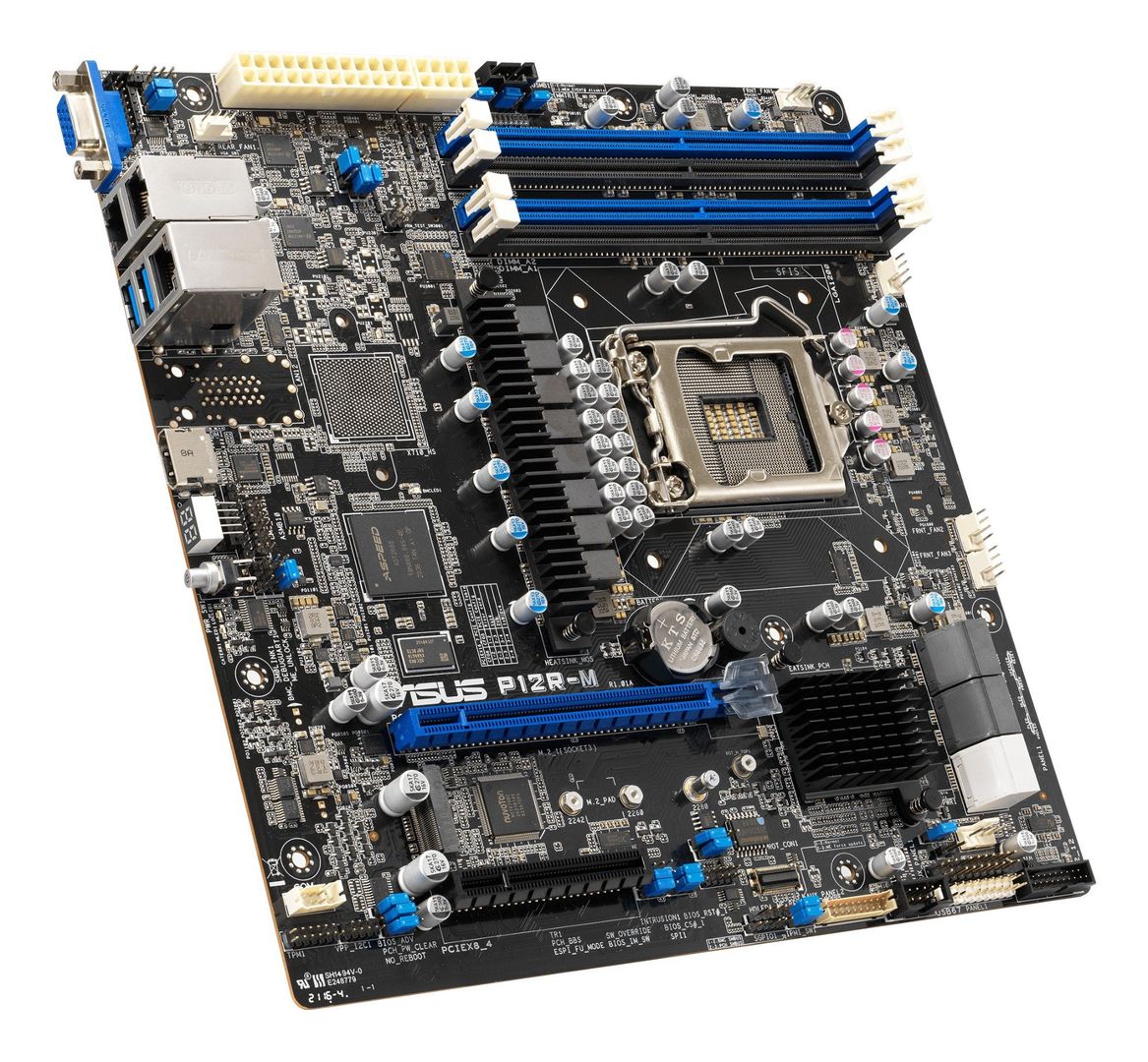

ASUS P12R-M/10G-2T/ASMB10 Intel C252 LGA 1200 (Socket H5) micro ATX

Compare today's prices on the "ASUS P12R-M/10G-2T/ASMB10 Intel C252 LGA 1200 (Socket H5) micro ATX".

ASUS P12R-M/10G-2T/ASMB10 Intel C252 LGA 1200 (Socket H5) micro ATX

Designed for demanding server workloads, this ASUS micro ATX motherboard unlocks the full potential of Intel Xeon E-2300 processors, delivering robust performance, reliable connectivity, and efficient scalability in a compact form factor. Whether you are building a dedicated file server, a virtualisation host, or a high-availability network appliance, the P12R-M/10G-2T provides enterprise-grade features normally reserved for larger boards, making it an ideal foundation for modern data-centre environments.

- Supports Intel Xeon E-2300 processors (LGA 1200) with up to eight cores and 95W TDP

- Four DIMM slots for DDR4 ECC memory, enabling up to 128GB of reliable system RAM

- Dual 10GBase-T LAN ports for ultra-fast network throughput and failover support

- Six SATA 6Gb/s ports with RAID 0/1/5/10 capability for flexible storage configurations

- One M.2 slot (PCIe 3.0 x4) for high-speed NVMe SSDs

- Two PCIe 4.0 x16 slots to accommodate expansion cards such as GPUs or additional controllers

- Integrated Aspeed AST2600 BMC with ASMB10-iKVM for remote management and monitoring

- One HDMI 1.4 port for local display output during setup or diagnostics

- Compact Micro-ATX form factor fits standard chassis while maximising internal space

With its blend of powerful compute support, dual 10G networking, and comprehensive remote management, this motherboard is built to keep your critical applications running smoothly around the clock.

GTIN: 4711081419747
