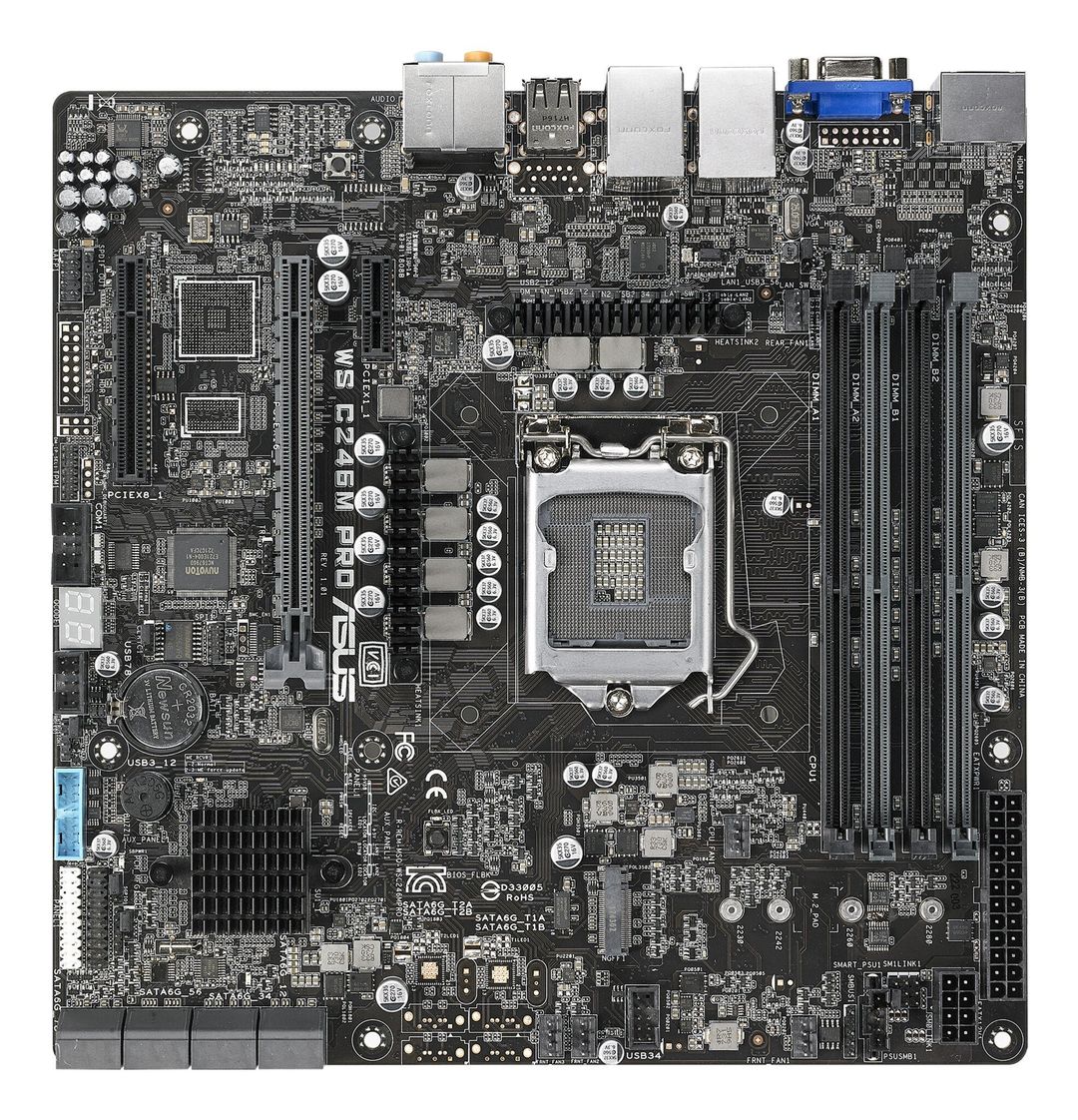

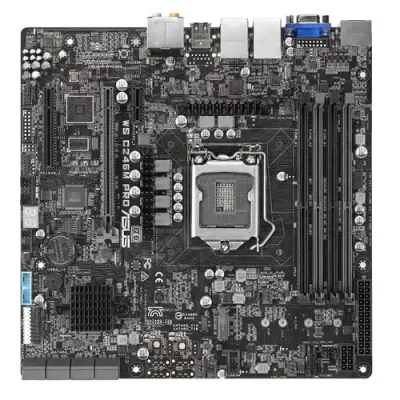

ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX

Compare today's prices on the "ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX".

ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX

This compact, rack-optimised micro-ATX motherboard delivers workstation-class stability and performance for space-constrained server or professional environments. Its Intel C246 chipset supports both Intel Xeon E and 8th/9th generation Core processors, offering a reliable foundation for demanding applications such as rendering, virtualisation, and data analysis.

Key features:

- Intel C246 chipset with LGA1151 socket for Xeon E and Core processors

- micro-ATX form factor ideal for compact rack or tower chassis

- Dual Intel Gigabit LAN with I219-LM and I210-AT controllers for robust networking

- Four DIMM slots supporting up to 128 GB of ECC or non-ECC DDR4 memory

- Two M.2 slots (PCIe 3.0 x4 and SATA) for fast NVMe SSDs

- Six SATA 6 Gbps ports with RAID 0, 1, 5, 10 support

- Two PCIe 3.0 x16 slots (single at x16, dual at x8/x8) plus two PCIe 3.0 x1 slots

- ASUS ProCool II power connector for improved heat dissipation and durability

- Integrated BMC with ASUS Control Center for remote management

- USB 3.1 Gen 2 Type-A and Type-C ports for high-speed connectivity

Ideal for server racks, digital signage, and industrial workstations that require long-term reliability and efficient thermal design.

GTIN: 4712900981636
